SuperLux Modular Range
The SuperLux Modular toilet system is designed to fold for transportation, is fully portable and easily installed in covered areas.
There are modules to provide cubicles, urinals, vanity units and accessible cubicles. As each module width is based on multiples of 0.9m it is possible to install the modules in any order to provide flexible arrangements for any number of guests or configuration.
The system is primarily designed for use with vacuum drainage with low water usage and chemical free.
System Requirements
SITING – A firm level base protected from weather.
POWER – A basic 3+1 setup will need 1x13amp single phase supply (240v) for the pump assembly (1.5kw) and 1x13amp single phase supply (240v) for water heating and lighting (3kw). Larger installations will require additional supplies depending on total equipment provided.
WATER – One supply normally required @ minimum 2 bar (max. 5 bar), but can be supplied using tanks and booster pump if necessary.
The system is primarily designed for use with vacuum drainage with low water usage and chemical free.
Toilet Cubicle (Patented: GB2432853) | Folded | Assembled |
---|---|---|
Width | 0.9 | 0.9 |
Depth | 0.69 | 1.8m |
Height | 2.26 | 2.2m |
Weight | 190 kg (approx. depending on model) | |
Standard toilet fitted | Jets 59M FD/VPC-V | |
Water consumption (per flush) | 0.8 litres (adjustable) | |
Lighting | 1x13w fluorescent | |
Power connection | 1 x system connection in 1 x system connection out |
Urinal Unit | Folded | Assembled |
---|---|---|
Width | 0.655m | 1.8m |
Depth | 0.925 | 0.9m |
Height | 2.24 | 2.2m |
Weight | 170 kg (approx. depending on model) | |
No. of urinals | 3 | |
Lighting | 3 x 13w fluorescent | |
Power connection | 1 x system connection in 1 x system connection out |

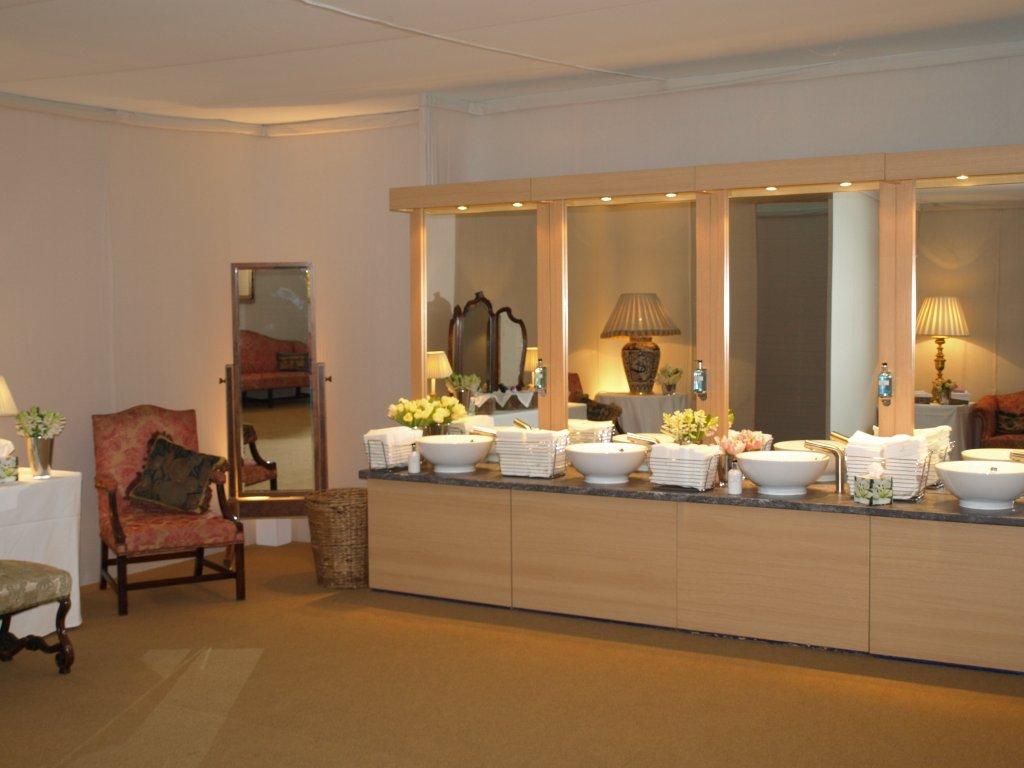

Vanity Unit | |
---|---|
Width | 0.9m |
Depth | 0.6m |
Height | 2.2m |
Weight | 70kg slave & 85kg master (approx. depending on model) |
MASTER UNIT ONLY | Automatic infra red tap (depending on model) 2.2kw 240v water heater 240v distribution board with RCD and circuit breakers |
Lighting | 2 x 240v 50w halogen |
Power connection | 1 no 16amp 240v-in 4x system connections-out |
SATELLITE UNITS | Automatic infra red tap (depending on model) |
Lighting | 2 x 240v 50w halogen |
Power connection | 1 x system connection in 1 x system connection out |
Nb A maximum of 3 satellite units per master unit.
At least one master unit needed for each installation.
Vacuum system | |
---|---|
15MB Pump system (multiples of) | Capacity 15m3/hr |
Flushing capacity 150 flushes/hr Power cons. (nom) 1.5KW 230v 60 Hz Current 6.1A |
|
Weight | 120kgs (approx) |
Power connection | 1x 16a 240v Single phase |
Grey water tanks – basins and urinals discharge to tank by gravity and interfaced with vacuum system by ED valve which is activated by water level |
